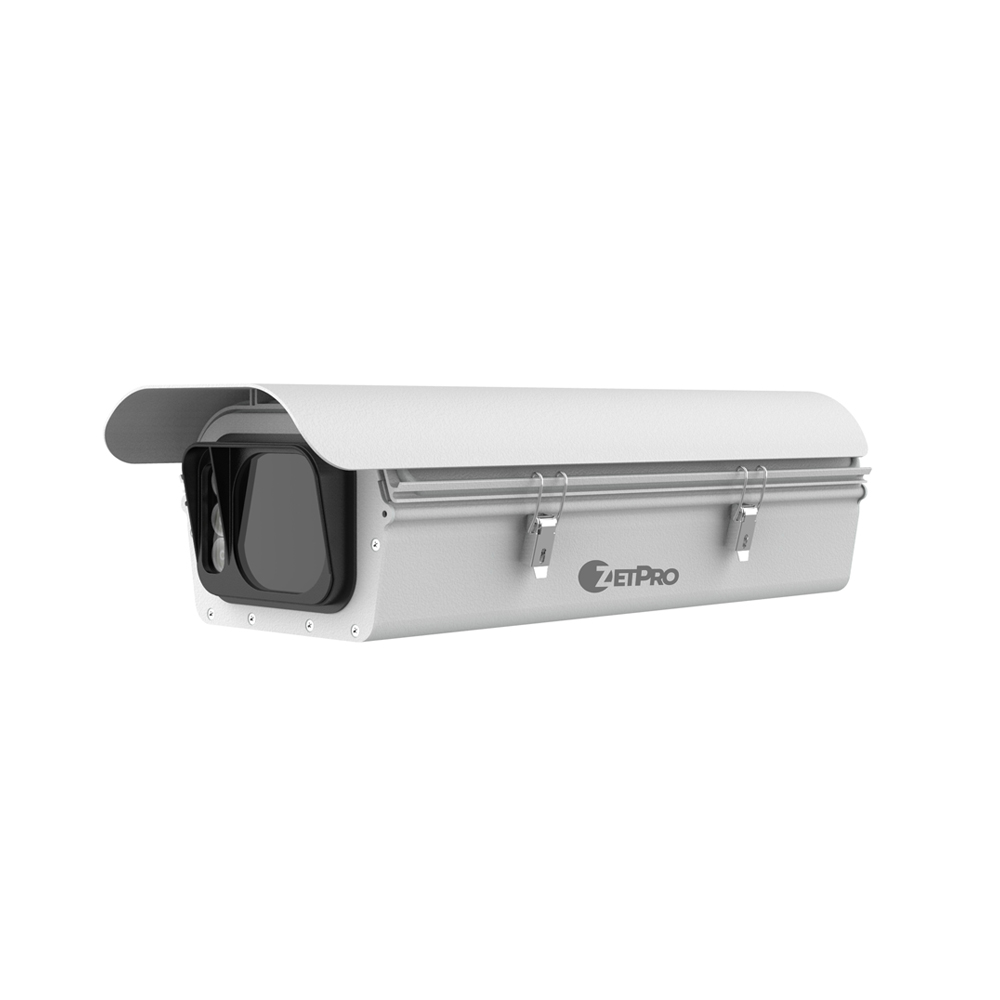

ZIP-9M-SFC-AI

9MP 1″ CMOS, WDR 64 dB, ANPR, face/vehicle detection, H.265/H.264/MJPEG, IR & strobe, GPS/BeiDou, I/O, SD 256 GB, IP66.

Description

Camera Specifications:

  • 1-inch high-sensitivity CMOS sensor
  • 16–40 mm varifocal lens with manual, automatic, or P-iris control
  • Supports resolutions up to 4096×2820 (4K)
  • Video formats: H.265, H.264, MJPEG
  • Frame rate: up to 50 fps
  • Wide Dynamic Range (WDR): up to 64 dB
  • Supports auto, custom, and manual exposure modes
  • Built-in IR and white strobe illumination with adjustable brightness
  • White balance modes: auto, night, manual
  • Noise reduction: 2DNR and 3DNR
  • Automatic IR-cut filter switching for night mode

Video Analytics & Recognition Features:

  • License plate recognition (including Cyrillic characters)
  • Driver and passenger face detection
  • Vehicle type, brand, and body color recognition
  • Detection of both motor and non-motor vehicles
  • Traffic violation detection:
    •  Speeding
    • Wrong-way driving
    • Red-light violations
    • Solid line crossing
    • Road sign violations
    • Unauthorized U-turns
    • Failure to yield to pedestrians
  • Traffic flow analysis: queue length, average speed, road occupancy
  • Illegal parking detection
  • Multi-frame capture (up to 4 images per trigger)

Storage & Security:

  • Storage via FTP or onboard microSD card (up to 256 GB)
  • ANR (Automatic Network Replenishment) support
  • Image protection: watermarking and data verification
  • Access security: login/password, MAC address filtering, HTTPS encryption
  • Fault detection: full storage, write errors, network failure, unauthorized access

Interfaces & Connectivity:

  • 2 × RJ-45 Ethernet ports (10/100/1000 Mbps)
  • 2 × USB 3.0 ports
  • 4 × RS-232 ports, 2 × RS-485 ports
  • 1 × audio input and 1 × audio output (3.5 mm jack)
  • GPS positioning module
  • Alarm inputs/outputs and trigger interfaces
  • Optical isolation ports for illumination and synchronization

Power & Environmental Specifications:

  • Power input: 100–240 V AC (50/60 Hz)
  • Power consumption: ≤20 W
  • Operating temperature: –40°C to +65°C
  • Operating humidity: 10% – 90%
  • Protection rating: IP66
  • Dimensions: 540 × 207.8 × 198 mm
  • Net weight: 4.6 kg, gross weight: 6.6 kg
  • Universal mounting bracket and standard power adapter included
Specification
Model ZIP-9M-SFC-AI
Camera
Sensor 1.1" 9MP Global Shutter CMOS
Max. Resolution 4096 × 2160
Min. Illumination 0.001 Lux
Shutter Time 50 us to 20000 us
Day/Night 24/7 color imaging
Lens
Lens Type Motorized varifocal lens, 16-40 mm (built-in)
Max. Aperture F1.5
Iris Type P-iris
Field of View(H) 50.1° to 21.2°
Field of View (V) 34.4° to 14.7°
Field of View (D) 60.3° to 25.3°
Focus Motorized
Zoom Motorized
Illuminato
Built-in Illuminator Type Warm light
Light Beads 3
Built-in Illumination Range Up to 30 m
External Illuminator Strobe and flash light
Video
Video Compression H.265, H.264, MJPEG
Video Resolution Main stream: 4096×2160, 1920×1080, 1600×1200, 1280×720
Sub stream: 1920×1080, 1280×720, 720×576, 704×288, 352×288Third stream: 720×576, 704×288,352×288
Video Frame Rate 4096×2160@50 fps
3840×2336@50 fps
Video Bit Rate 128-16384 Kbps
Video OSD Up to 8 OSDs
ROI Up to 8 ROIs
Composite Image Supports merging up to 4 violation images into a single composite image
Image Resolution 4096 × 2160
Image Encoding Format JPEG
Image Settings Shutter, gain, white balance
Digital Noise Reduction 2DNR/3DNR
Image OSD Supports various overlays with adjustable overlay position, overlay order, font size, font style,font color, etc.
Intelligent
ANPR Violation Detection Detects wrong-way driving, speeding, underspeeding, lane violations, solid line crossing, sign violations, and speed measurement via video
E-Police Violation Detection Detects red-light running, illegal turns, lane violations, stop-line crossing, not yielding to pedestrians, and unauthorized U-turns
Pedestrian Violation Detection Detects vehicles not yielding to pedestrians
Non-motor Vehicle Violations Detects violations by bicycles and scooters: riding on highways, wrong-way driving, no helmet
Traffic Flow Recognition Generates statistics: vehicle count, queue length, average speed, and road load; exportable to Excel
Traffic Violation Recognition Detects illegal parking, wrong-way driving, and congestion conditions
Video Metadata - Motor Vehicles Includes license plate, vehicle type, color, plate color, and brand logo
Storage
Edge Storage 8GB eMMC, supports expansion to 256 GB micro SD (TF) card
Automatic Network Replenishment (ANR) Support
Network
Protocols SSH; RTP; RTCP; IPv4; ARP; TCP; UDP; DHCP; RTSP; RTMP; DNS; DDNS; NTP; FTP; UPnP; HTTP; HTTPS; 802.1x; SNMP; LAPI
Compatible Integration ONVIF; SDK
User/Host Up to 32 users; 3 user levels: administrator, common user, and operator
Web Browser IE 10 or higher, Chrome 45.0 or higher, FireFox 52.0 or higher, Edge 79 or higher
Interface
I/O control 4 × synchronous signal output interface (switch)
4 × synchronous signal output interface (TTL) or 4 × signal input interface (switch)1 × standard relay interface 3 × RS485, 1 × RS232
Network 2 × RJ45 10M/100M/1000M Base T adaptive Ethernet interface
USB 1 USB 3.0 interface
Reset Button Support
General
Power Supply 100-240 V AC (50 Hz/60 Hz)
Power Consumption ≤ 16 W
Dimensions 211.7mm (W) ×137.2mm (H)×575mm (D)
Weight Approx. 5.67 kg
Operating Environment - 40°C to 70°C, 10% to 90% RH (non-condensing)
Lightning and Surge Protection Support, ≤ 6KV
Ingress Protection IP65
Material Aluminum alloy
Heater N/A
Fan Support
