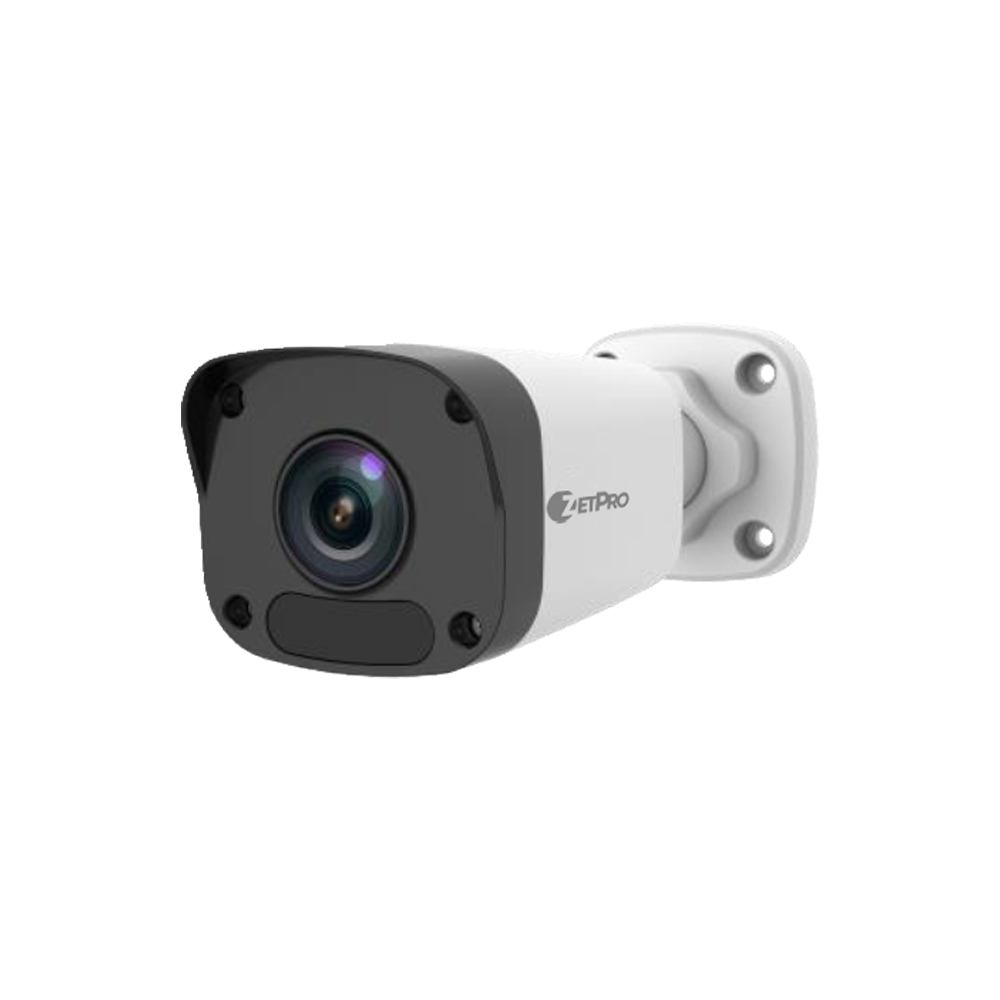

ZIP-2122LT-BT-F40M

2MP 1/2.7″ CMOS, 4 mm lens, H.264/H.265, WDR 120 dB, 0.01 Lux (color), IR up to 30 m, –30°C to +60°C, 10–90% RH, durable housing.

Description
    • Image
      • Mechanical IR filter (day/night)
      • Adaptive IR illumination with a range of up to 30 m
      • 3D DNR noise reduction system

      Video

      • Compression format – Ultra H.265/H.265/H.264/MJPEG
      • Illumination Compensation (HLC, BLC)
      • WDR 120DB
      • Region of Interest (ROI)

      Compatibility

      • ONVIF protocol support (Profile S, Profile G, Profile T)

      Terms of use

      • Operating temperature from -30 to +60 °C
      • Power supply 12 In post. current or ROE
      • 4KV surge protection
      • Degree of protection IP67

      PoE signal and power transmission for 250 meters in a pair with NVR ZIP-NVR301-04L-P4 or PoE switches ZTP-ZP1024-HPoE, ZTP-ZP1016-HPoE, ZTP-ZP1081HPOE, ZTP-ZP204HPOE

Specification
ZIP-2122LT-BT-F40M
Cell
Sensor 1/2.7″ inch; 2.0 MP, progressive scan, CMOS
Lens 4.0mm@F1.6
Range of detection, observation, recognition and identification Lens (mm) Detection (m) Observation (m) Identification (m) Recognition (m)
4.0 60 24 12 6
Viewing angle (H) 91.2°
Viewing angle (B) 47.9°
Viewing angle (D) 95.9°
Angle adjustment Panning: 0 ° -360 ° Tilt: 0 ° -90 ° Rotation: 0 ° -360 °
Shutter Automatic/manual; 1-1/100,000 s
Minimum lighting Color: 0.01 lux (F1.6, AGC ON)
0 lux with IR illumination
Day and night Automatic IR filter (ICR)
Digital noise reduction 2D/3D DNR
Signal/noise > 56 dB
Range of IR illumination  up to 30 m
Wavelength 850 nm
Enablement management/ Auto/manual
by turning off the IR illumination
Antifog Digital anti-fog
WDR 120 dB
Video
Video compression Ultra 265, H.265, H.264, MJPEG
H.264 encoding profile Basic Profile, Basic Profile, High Profile, MJPEG
Frame rate Main stream: 1080P (1920 * 1080), Max 30fps; 720P (1280*720), Max 30fps
Additional stream: 720P (1280 * 720), Max 30fps; D1 (720 * 576), Max 30fps; 640 * 360, Max 30fps; 2CIF (704 * 288), Max 30fps; CIF (352 * 288), Max 30fps;
Video data transfer speed 128 Kbit/s-16 Mbit/s
Corridor mode 9:16 Supported
OSD Up to 4 OSDs
Masking mode Up to 4 regions
ROI Up to 8 regions
Motion detection Up to 4 regions
White balance Auto/External/Fine Tuning/Sodium Lamp/Locked/Auto2
Digital noise reduction 2D/3D DNR
Smart IR illumination Supported
Overturning Normal Position/Vertical/Horizontal/180°/90°Clockwise/90°Counterclockwise
HLC Supported
BLC Supported
audio
Audio compression –
Suppression of obstacles –
Sampling frequency –
Refuge
Local memory –
Network storage –
Smart
Behavior detection –
Network connector
Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, QoS, SSL
The possibility of integration ONVIF (profile S, G, T), API
Client/Utility Guard Station
Guard Viewer
Guard Tool
Interface
Network connector 10/100M Base-TX Ethernet
Built-in microphone Not supported
Certification
General characteristics
Feeding 12 In post current ±25%, PoE (IEEE 802.3af)
Power: Up to 6 W
Dimensions (L x W x H) 165 x 33 x 62 mm
Net weight 0.45 kg
Material plastic
Terms of use from -30 to 60 °C, humidity: ≤95%, relative (without condensation)
Storage conditions from -30 to 60 °C, humidity: ≤95%, relative (without condensation)
Overvoltage protection 4 kV
The degree of protection against the penetration of dust and water IP67
