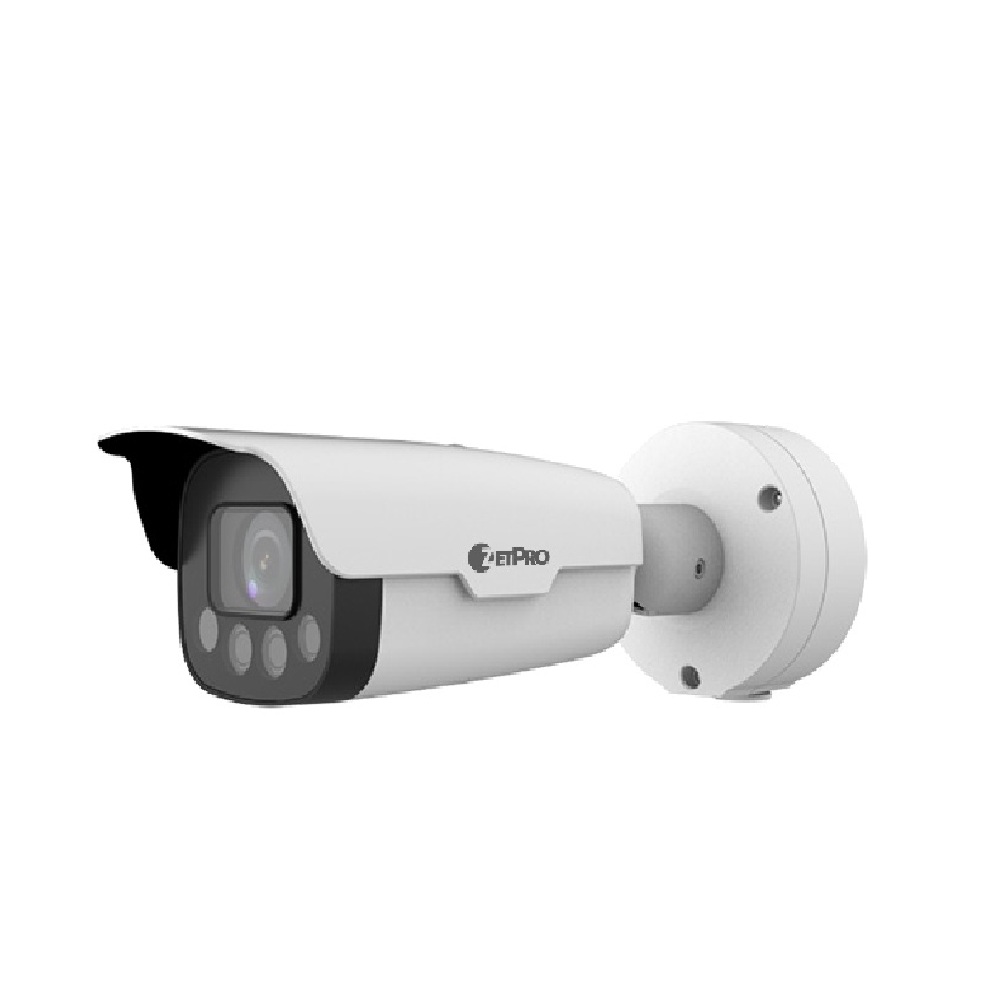

ZIP-5100LPR-AI12CP

2MP 1/2.8″ CMOS, WDR 120 dB, LPR, H.264/H.265/Ultra 265, Audio, SD, IR 100 м, –40…+60 °C, 12× zoom.

Description




  • Mechanical IR-cut filter (Day/Night)

  • Adaptive IR illumination with a range up to 100 m

  • 3D DNR noise reduction system

Video

  • Compression format: Ultra H.265 / H.265 / H.264 / MJPEG

  • Built-in video analytics

  • Simultaneous transmission of three video streams

  • ROI (Region of Interest)

  • HLC (High Light Compensation)

Audio

  • — (no specific details provided)

Compatibility

  • ONVIF protocol supported

Operating Conditions

  • Operating temperature: –40 °C to +60 °C

  • Power supply: 12V DC or PoE

  • Protection level: IP67

Built-in Analytics:

  • LPR system for automatic license plate recognition (on-board)

  • Recognition speed: up to 40 m/s

  • On-board vehicle make recognition

  • On-board vehicle model recognition

  • On-board vehicle color recognition

  • Database of over 800 vehicle makes and models

Specification
Camera
Sensor 1/2.7-inch CMOS sensor
Min. illumination Colour: 0.001 lux (F1.6, AGC on), 0 lux with IR illumination
Day/Night IR filter with automatic switching (ICR)
Shutter Auto/Manual, 1 to 1/100000 s
WDR 120 dB
Adjustment angle Pan: 0° to 360°, tilt: 0° to 90°, rotation: 0° to 360°
S/N >56 dB
Lens
Focal length 5 to 60 mm
Digital zoom 16X
Optical zoom 12X
Iris F1.6
Field of view (H) 59.99° to 5.73
Field of view (V) from 35.03° to 3.39°
Field of view (D) from 67.01° to 6.61°
Iris type DC iris
DORI
DORI distance (lens) 5 to 60 mm
DORI distance (detection) from 119.3 m to 1417.5 m (from 391.2 ft to 4650.6 ft)
DORI distance (observation) from 47.7 m to 567.0 m (from 156.5 ft to 1860.2 ft)
DORI distance (recognition) from 23.9 m to 283.5 m (from 78.2 ft to 930.1 ft)
DORI distance (identify) from 11.9 m to 141.8 m (from 39.1 ft to 465.1 ft)
Video
Video compression Ultra 265, H.265, H.264, MJPEG
Video bit rate 128 Kbps to 16 Mbps
Smart code Support
ROI Support
Video stream Triple streams
Privacy mask Up to 4 zones
On-screen menu Up to 10 on-screen menus
Frame rate – main stream 5 MP (2880 × 1620), max. 30 frames/s
Frame rate – sub-stream 1080P (1920 × 1080), max. 30 frames/s
Frame rate – third stream D1 (720 × 576), max. 30 frames/s
Smart
Application scenario Vehicle speed ≤190 km/h
Vehicle detection mode Video
Number plate type Standard, inverted, narrow-angle
Licence plate recognition By default, recognition of number plates with numbers and letters is supported
List configuration Supports white and black list configuration
Additional features Car make and model recognition
White balance Auto, Outdoor mode, Fine tuning, Sodium lamp, Locked, Auto2
Digital noise reduction 2D/3D DNR
Rotation Normal, Display vertically, Display horizontally, 180°, 90° clockwise, 90° counterclockwise
HLC Support
BLC Support
Smart IR illumination Support
Detumming Digital anti-fog
Heat wave reduction Support
Events
Basic detection Motion detection, intrusion alarm, sound detection, object removal, object left behind
General function Watermark, IP address filtering, access policy, ARP protection, RTSP authentication, user authentication, HTTP authentication, alarm input
Audio
Audio compression G.711U, G.711A
Audio bit rate 128 Kbps
Two-way audio communication Support
Suppression Support
Sampling frequency 16 kHz
Storage
Peripheral storage MicroSD, up to 512 GB
Network storage ANR, NAS (NFS)
Network
Protocols SSH, IGMP, RTP, RTCP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS
Compatible integration ONVIF (Profile S, Profile G, Profile T, Profile M), API, SDK
User/Host Up to 32 users. 3 user levels: administrator, normal user and operator
Security TLS 1.3, password protection, strong password, HTTPS encryption, operation log export, basic and digest authentication for RTSP, digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF
Client Guard Live, Guard Station, ZetPro VMS
Web browser Real-time viewing requiring a plug-in: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, real-time viewing without a plug-in: Chrome 57+, Firefox 58+, Edge 16+
Illuminator
Illumination range (IR) 100 m (328.1 ft)
IR on/off control Automatic/Manual
Wavelength 850 nm
Interface
Audio input/output 1 Input: impedance 1 kOhm, amplitude 2.5 V [pics.], 1 Output: impedance 600 Ohm, amplitude 2.5 V [pics.
Alarm input/output 2/1
Serial port 1 × RS485
Network 1 × RJ45 10 M/100 M Base-TX Ethernet
Video output 1 BNC (for debugging)
General
Power 12 V DC (±25%), PoE+ (IEEE 802.3at)
Power consumption Max. 13 W
Power interface Ø5.5 mm coaxial power connector
Dimensions 354 mm × 105 mm × 98 mm (13.9 inches × 4.1 inches × 3.9 inches) (L × W × H)
Weight 1.93 kg (4.25 lb)
Operating environment -40°C to 60°C (-40°F to 140°F), humidity: ≤ 95% relative humidity (non-condensing)
Storage environment -40°C to 70°C (-40°F to 158°F), humidity: ≤ 95% relative humidity (non-condensing)
Surge protection 6 kV
Reset button Support
Web client language 21 languages: English, Chinese, Polish, German, Ukrainian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese, Arabic, Slovak
Heater Support
