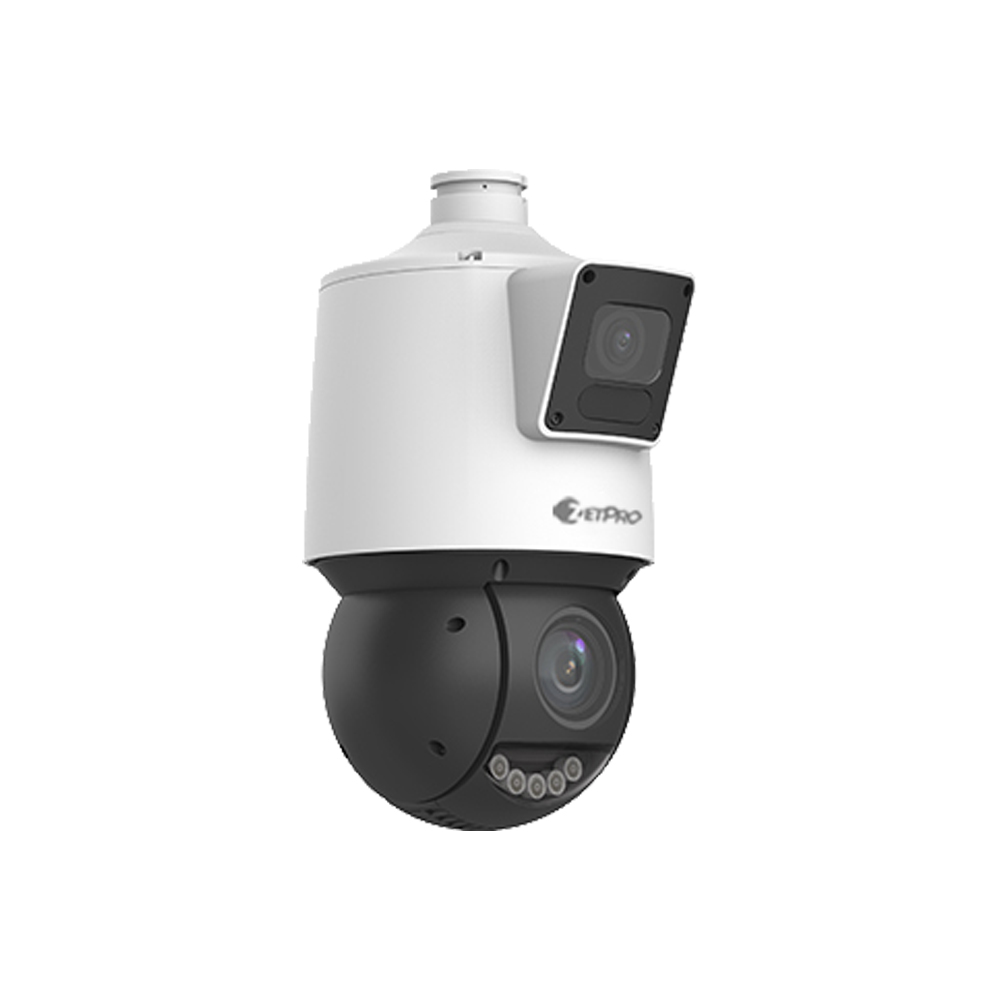

ZIP-8444MR-25XPTZ-F40

Dual 4MP sensors with 25X zoom, 0.003 lux Starlight, Smart IR up to 100m, ICR for day/night, and 120 dB WDR for dynamic lighting.

Description
  • Camera: Combines a fixed camera and a PTZ camera in a single device, offering dual-channel operation under one IP.
  • Lens: Features a 4MP, 1/2.7’’ CMOS sensor for sharp and detailed imaging.
  • Zoom: PTZ camera supports 25X optical zoom for precise close-ups.
  • Video Compression: Supports Ultra 265, H.265, H.264, and MJPEG formats for efficient video storage.
  • Smart Tracking: PTZ channel can track objects triggering smart intrusion prevention rules from the fixed camera.
  • Power Supply: Operates with DC12V or PoE+ (IEEE 802.3at) for flexible installation options.
  • Audio & Alarms: Includes 2 alarm inputs, 1 alarm output, and 1 audio input/output for advanced integration.
Specification
ZIP-8444MR-25XPTZ-F40
Camera Panorama Detail
Sensor 1/2.7", 4MP, CMOS 1/2.7", 4MP, CMOS
Min. Illumination Color:0.003 lux (F1.6, AGC ON) 0 lux with IR Color:0.003 lux (F1.5, AGC ON) 0 lux with IR
Day/Night IR-cut filter with auto switch (ICR)
Shutter Auto/Manual, 1 ~ 1/100000s
WDR 120dB
S/N ＞56dB
Lens
Lens type 4mm@F1.6 4.8~120mm@F1.5, AF automatic focusing and motorized zoom lens
Optical Zoom N/A 25X
Iris Fixed aperture; F1.6 Auto; F1.5(W)~F3.8(T)
Angle of View (H) 91.3° 55.46° ~ 3.09°
Angle of View (V) 51.5° 32.94° ~ 1.73°
Angle of View (O) 112.3° 68.22° ~ 3.65°
DORI
DORI Distance Lens (mm) Detect (m) Observe (m) Recognize (m) Identify (m)
4 (Panorama) 90.0 (295.3 ft) 36.0 (118.1 ft) 18.0 (59.1 ft) 9.0 (29.5 ft)
4.8 (Detail 123.8 (406.0 ft) 49.5 (162.4 ft) 24.8 (81.2 ft) 12.4 (40.6 ft)
120 (Detail) 2475.0 (8120.1 ft) 990.0 (3248.0 ft) 495.0 (1624.0 ft) 247.5 (812.0 ft)
Illuminator
IR Range Up to 30m (98.4 ft) Up to 100m (328.1 ft)
Wavelength 850nm (IR)
Light On/Off Control Auto/Manual
Video
Video Compression Ultra 265, H.265, H.264, MJPEG
Frame Rate Main Stream: 4MP (2688*1520),Max 30fps; Sub Stream: 1080P (1920*1080), Max 30fps; Third Stream: D1 (720*576), Max 30fps; Main Stream: 4MP (2688*1520),Max 30fps; Sub Stream: 720P (1280*720), Max 30fps; Third Stream: D1 (720*576), Max 30fps;
Video Bit Rate 128 Kbps ~ 16 Mbps
Smart-code Support
ROI Up to 8 areas
Video stream Triple streams
OSD Up to 8 OSDs
Privacy Mask Up to 4 areas per scene 24 areas, up to 4 areas per scene
White Balance Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital noise reduction 2D/3D DNR
Smart IR Support
Flip Normal/Flip Vertical/Flip Horizontal/180°
HLC Support
BLC Support
Defog Digital defog
Events
Basic Detection Motion detection, Audio detection, Tampering Alarm
Auto Tracking N/A Support
General Function Watermark, IP Address Filtering, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication
Audio
Audio Compression G.711U, G.711A
Audio Bitrate 64 Kbps
Two-way Audio Support
Suppression Support
Sampling Rate 8 kHz
Storage
Edge Storage Micro SD, up to 256 GB
Network Storage ANR
Network
Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/TLS
Compatible Integration ONVIF (Profile S, Profile G, Profile T), API, SDK
User/Host Up to 32 users. 3 user levels: administrator, operator and common user
Security Password protection, strong password, HTTPS encryption, Export operation logs, basic and digest authentication for RTSP, digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF
Web Browser Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above
Pan & Tilt
Pan Range N/A 360°
Pan Speed N/A 0.1°/s ~ 80°/s
Preset speed: N/A Preset speed: 80°/s
Tilt Range 18° ± 5° -15° ~ 90°
Tilt Speed N/A 0.1°/s ~ 80°/s
Preset speed: N/A Preset speed: 80°/s
Number of Presets 1024
Preset Patrol 16 patrols, up to 64 presets for each patrol
Route Patrol 16 patrols, up to 32 actions for each patrol
Recorded Patrol 16 patrols, up to 128 actions for each patrol
Patrol Stay Time 15s~1800s
Preset Image Freeze N/A
Home Position Support
Interface
Audio I/O 1/1
Alarm I/O 2/1
Serial Port 1 RS485
Built-in Mic N/A
Built-in Speaker Support
Wi-Fi N/A
Network 1 * RJ45 10M/100M Base-TX Ethernet
Video Output N/A
General
Power DC12V (±25%), PoE+(IEEE 802.3at)
Power consumption: MAX 24W
Power Interface Ø 5.5mm coaxial power plug
Dimensions (Ø x H) Φ163 x 304mm (Φ6.4” x 12.0”)
Weight 2.27kg (5.00lb)
Working Environment -40℃ ~ +65℃(-40°F ~ +149°F)，Humidity: ≤95% RH (non-condensing)
Storage Environment -40℃ ~ +70℃(-40°F ~ +158°F)，Humidity: ≤95% RH (non-condensing)
Surge protection 6KV
Reset button Support
