- 32 channels
- ONVIF support (Profile S, Profile G, Profile T)
- HDMI, VGA
- Recording up to 8 MP per channel
- H.264/H.265/ Ultra 265 encoding
- 2 SATA HDDs, up to 8TB
- P2P, UPnP, NTP, DHCP, PPPoE
ACCESSORIES

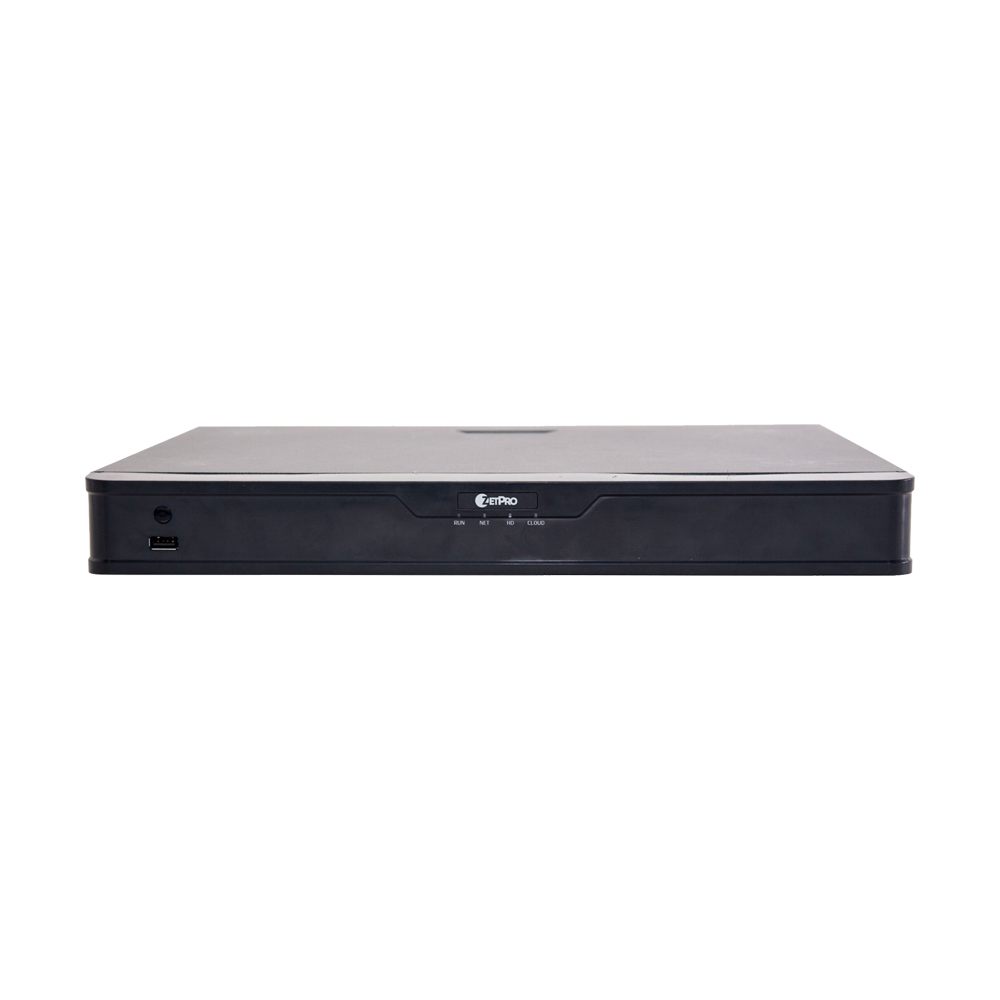

ZIP-NVR302-32L6TB
32-channel smart IP video recorder supporting Ultra 265/H.265/H.264 compression and up to 8 MP recording per channel. Features HDMI and VGA outputs, ONVIF support (Profiles S/G/T), ANR function, and P2P cloud service. Supports 2 SATA HDDs (up to 8 TB each), 2× USB 2.0 ports, and standard network protocols (UPnP, NTP, DHCP, PPPoE).
Description
Specification
| Model | ZIP-NVR302-32L6TB |
| Video and audio | |
| Channels | 32 |
| audio | 1-channel, RCA |
| Network parameters | |
| Input bitrate | 160Mbps |
| Output bitrate | 64Mbps |
| Remote users | 128 |
| Video and Audio options | |
| HDMI/VGA outputs | HDMI: |
| 4K (3840×2160)@30, 1920x1080p@60, 1920x1080p@50, 1600×1200@60, 1280×1024@60, 1280×720@60, 1024×78 | |
| VGA: | |
| 1920x1080p@60, 1920x1080p@50, 1600×1200@60, 1280×1024@60, 1280×720@60, 1024×768@60 | |
| Record on the channel | 8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
| Audio output | 1-channel, RCA |
| Simultaneous viewing | 32 channels |
| Corridor mode | 3/4/5/7/9/10/12/16/32 |
| Compression | |
| compression | Ultra 265/H.265/H.264 |
| Playback | 8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
| Live display | 2 x 4K@30, 3 x 5MP@30, 4 x 4MP@30, 5 x 3MP@30, 8 x 1080p@30, 16 x 720p@30 |
| Hard drive | |
| SATA | 2 SATA |
| Volume | up to 8TB |
| Interfaces | |
| Network interface | 2 RJ-45 10M/100M/1000M self-adaptive Ethernet Interfaces |
| USB | Rear panel: 1 x USB2.0; 1 x USB3.0 Front panel: 1 x USB2.0 |
| general | |
| Power | 12V DC |
| Consumption | ≤15 W (without HDD) |
| Working temperature | -10°C ~ + 55°C |
| Working humidity | 10% ~ 90% |
| Dimensions | 380.0× 315.0×53 mm |
| Weight (without HDD) | ≤ 2.48 kg |
