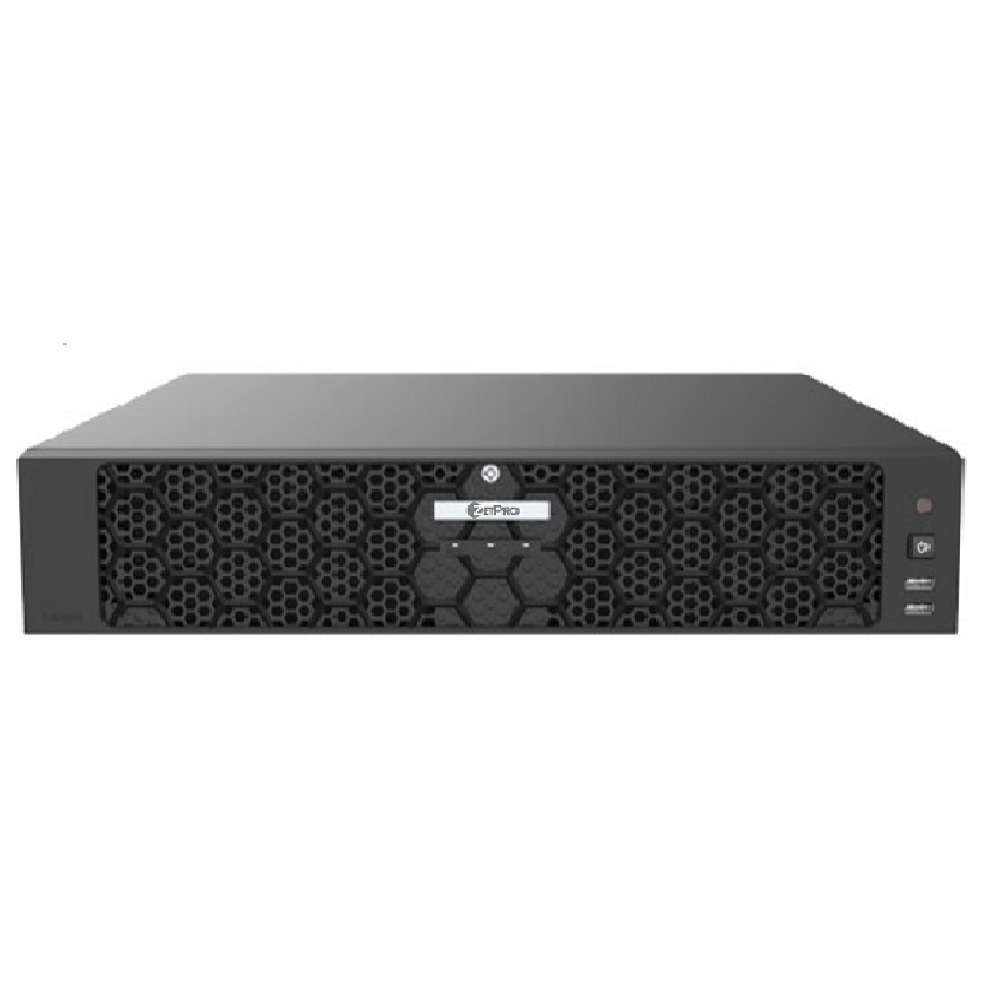

ZIP-NVR708-64AI-PRO

64-channel smart NVR supporting up to 32 MP per channel and Ultra 265/H.265/H.264 compression. Dual 4K HDMI and VGA outputs with independent display, 8× SATA HDDs (up to 16 TB each) with RAID 0/1/5/6/10, hot-swap and N+1 redundancy. ONVIF (Profiles S/G/T), RTSP and standard network protocols supported. Optional backup PSU.

Description

  • Support for up to 64 IP cameras

  • Dual video outputs: HDMI1 (4K), HDMI2 (4K) + VGA (Full HD)

  • Video recording resolution up to 32 MP

  • Video compression: Ultra 265 / H.265 / H.264

  • Support for 8 SATA HDDs up to 16 TB each (total capacity up to 128 TB)

  • Support for RAID 0/1/5/6/10, hot-swap HDD, N+1 redundancy

  • Compatibility with IP cameras via ONVIF (Profile S, G, T) and RTSP

  • Backup power supply (optional), 12 V power input

  • Network support: P2P, UPnP, NTP, DHCP, PPPoE, 3G/4G

  • Cloud firmware upgrade

Specification
Model ZIP-NVR708-64AI-PRO
Decoding
Decoding Format Ultra 265, H.265, H.264
Decoding Capability 2 x 32MP@30, 4 x 16MP@30, 5 x 12MP@30, 8 x 4K@30, 16 x 4MP@30, 32 x 1080P@30, 54 x 960P@25, 64 x 720P@30
Decoding Capability The resolution of each channel cannot exceed 8192 pixels in length or width
Audio Compression G.711A, G.711U
Network
Incoming Bandwidth 384 Mbps
Outgoing Bandwidth 384 Mbps
Remote Users 128
Protocols TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP,
NFS, RTSP, 802.1x,  IPv6, IPv4
Browser (Plugin) IE10, IE11, Chrome 45+, Edge 79+, Firefox 52+
Video/Audio Input
RCA Audio Input 1-ch
Video/Audio Output
HDMI Output 4K (3840 × 2160)/60 Hz, 4K (3840 × 2160)/30 Hz, 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
VGA Output 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
RCA Audio Output 2-ch
Liveview Display HDMI1/VGA1:1/4/6/8/9/16/25/ 36/64, HDMI2/VGA2:1/4/6/8/9/16/25/36
Corridor Mode Screen 3/4/5/7/9/10/12/16/32
Two-way Audio
Two-way Audio 1-ch, RCA (Using the audio input and output)
Snapshot
FTP/Schedule/Event Snapshot 16-ch snapshot (max. 8 MP (3840 × 2160) video resolution, with 1080P snapshot resolution)
Recording
Recording Resolution 32 MP/16 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF
Synchronous Playback in Local 16-ch
Smart
VCA Detection by IPC Face Detection, Face Comparison, Vehicle Detection, SIP (Intrusion Detection, Cross Line Detection, Enter Area, Leave Area), Ultra Motion Detection (UMD), Temperature Detection (Fire Detection, Smoking Detection, Temperature Measurement, Smoke and Fire Detection), People Counting (People Flow Counting, Crowd Density Monitoring), Video Metadata, Traffic Monitoring
VCA Search Face Snapshot Search, Face Comparison Search, Motor Vehicle Search, Non-Motor Vehicle, Search, Human Body Search, General Search, People Counting Report, Heat Map
Smart by IPC All channels (up to 16 images/s in total)Face Detection, Face Comparison, Vehicle Detection, Temperature Detection, SIP, UMD, Video Metadata, Traffic Monitoring
Vehicle Picture Library Up to 5 vehicle picture libraries, with up to 25,000 vehicle pictures in total
Alarm
General Alarm Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Motion Detection, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection
Alert Alarm IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Hard Disk Space, Low, Hard Disk Full, Recording/Snapshot Abnormal
GUI Language
GUI Language 38 languages: Simplified Chinese, Traditional Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian, Estonian, Bulgarian, Greek, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenia, Serbia,Korean, Japanese, Latvian, Lithuanian, Persian
Hard Disk
SATA 8 SATA Interfaces
Capacity Up to 16 TB for each HDD (The maximum HDD capacity varies with environment temperature)
Disk Group Support
Disk Array Type RAID 0, 1, 5, 6, 10
Hot Swap Support
External Interface
Network Interface 2 RJ45 10 M/100 M/1000 M self-adaptive Ethernet Interface
USB Front panel: 2 × USB2.0, Rear panel: 2 × USB3.0
RS485 1
RS232 1
Alarm In 16-ch
Alarm Out 10-ch
eSATA 1
Power Output 12 V
Power Supply AC 100 to 240 V
Working Environment
Working Temperature -10 ℃ to 55 ℃ (14 ℉ to 131 ℉)
Working Humidity ≤ 90% RH (non-condensing)
Power Consumption (without HDD) ≤ 35W
Dimensions
Weight (without HDD) ≤ 6Kg (13.23lb)
Dimensions 442mm × 448mm × 93mm (17.4" × 17.6" × 3.7")
