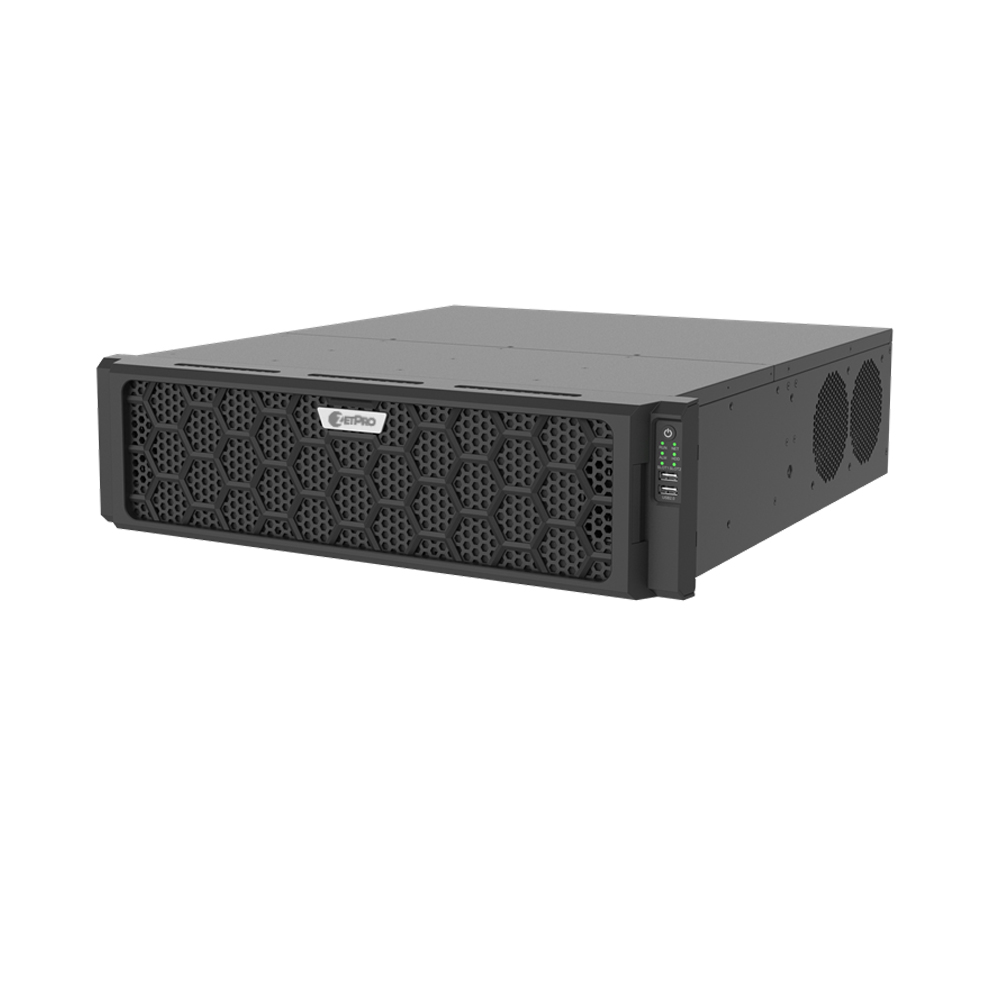

ZIP-NVR716-128AI-PRO

28-ch NVR (up to 32MP), 640Mbps. 16x SATA (up to 24TB, RAID, Hot Swap). Dual HDMI (8K)/VGA. AI (Face/LPR). 2x GbE, eSATA, redundant power.

Description

    • Number of Channels: Up to 128 IP video channels.

    • Bandwidth: Incoming — 640 Mbps, Outgoing — 640 Mbps.

    • Compression Formats: Ultra 265, H.265, H.264.

    • Recording Resolution: Up to 32 MP (including 16 MP, 12 MP, 8 MP, and lower).

    • Video Outputs:

      • HDMI1: Up to 8K (7680 × 4320).

      • HDMI2: Up to 4K (3840 × 2160)

      • VGA (2 ports): Up to 1920 × 1080.

      • Supports independent and simultaneous video output.

    • Storage Subsystem:

      • Supports RAID 0, 1, 5, 6, 10, 50, 60.

      • 16 SATA interfaces for HDDs with a capacity of up to 24 TB each.

      • Supports Hot Swap (hot-swappable drives).

    • Smart Functions: Face detection and comparison, vehicle detection (LPR), video metadata, people counting, and heat map.

    • Network Interfaces: 2 × RJ45 10M/100M/1000M self-adaptive Ethernet interfaces.

    • Alarm Interfaces: 16 inputs and 10 outputs.

    • Additional Ports: 4 USB (2 × USB 2.0 on the front panel, 2 × USB 3.0 on the rear panel), 1 × RS485, 1 × RS232, 1 × eSATA.

    • Power Supply: AC 100~240 V, supports redunda

Specification
Model ZIP-NVR716-128AI-PRO
Decoding
Decoding Format Ultra 265, H.265, H.264
Decoding Capability H264 : 2 x 32MP@30, 4 x 16MP@30, 6 x 12MP@30, 9 x 4K@30, 14 x 5MP@30, 18 x 4MP@30, 24 x 3MP@30, 36 x 1080P@30, 72 x 720P@30, 128 x D1
H265 :  3 x 32MP@30, 6 x 16MP@30, 8 x 12MP@30, 12 x 4K@30, 19 x 5MP@30, 24 x 4MP@30, 32 x 3MP@30, 48 x 1080P@30, 96 x 720P@30, 128 x D1
Decoding Capability Description The resolution of each channel cannot exceed 8640 pixels in length or width,   For VGA/HDMI independent output, the VGA live video is output by default. To output the highest resolution video from the HDMI port, please clear the VGA video on the preview page.
Audio Compression G.711A, G.711U
Network
Incoming Bandwidth 640Mbps
Outgoing Bandwidth 640Mbps
Remote Users 128
Protocols TCP/IP, P2P,  UPnP,  NTP,  DHCP,  PPPoE,  HTTP,  HTTPS,  DNS,  DDNS,  SNMP, SMTP, NFS, RTSP, 802.1x,  IPv6, IPv4
Browser (Plugin) IE10, IE11, Chrome 45+, Edge 79+, Firefox 52+
Video/Audio Input
IP Video Input 128‑ch
RCA Audio Input 1‑ch
Video/Audio Output
HDMI Output HDMI1: 8K (7680 × 4320)/30 Hz, 4K (3840  2160)/60 Hz, 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz; HDMI2: 4K (3840 × 2160)/60 Hz, 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
VGA Output 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
RCA Audio Output 2‑ch
Liveview Display 1/4/6/8/9/16/25/36/64
Corridor Mode Screen 3/4/5/7/9/10/12/16/32
Two‑way Audio
Two‑way Audio 1‑ch, RCA (Using the audio input and output)
Snapshot
FTP/Schedule/Event Snapshot 16‑ch snapshot (max. 8 MP (3840 × 2160) video resolution, with 1080P snapshot resolution)
Recording
Recording Resolution 32 MP/16 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF
Synchronous Playback in Local 16‑ch
Smart
Smart by IP All channels (up to 32 images/s in total) Face Detection, Face Comparison, Vehicle Detection (LPR), Temperature Detection, SIP, UMD, Video Metadata, Traffic Monitoring
VCA Search Face Snapshot Search, Face Comparison Search, Motor Vehicle Search, Non‑Motor Vehicle Search, Human Body Search, General Search, People Counting Report, Heat Map
Alarm
Alert Alarm IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal
Hard Disk
SATA 16 SATA Interfaces
Capacity Up to 24 TB for each HDD (The maximum HDD capacity varies with environment temperature and hard disk size, The environment temperature for use should not exceed 40°C)
Disk Group Support
Redundant Storage Support
Disk Array Type RAID 0, 1, 5, 6, 10, 50, 60
Hot Swap Support
External Interface
Network Interface 2 RJ45 10 M/100 M/1000 M self‑adaptive Ethernet Interface
USB Front panel: 2 × USB2.0, Rear panel: 2 × USB3.0
RS485 1
RS232 1
Alarm In 16‑ch
Alarm Out 10‑ch
Power Output 12 V
Power Supply AC 100 to 240 V
Power Switch Support
Redundant Power Supply Support
Working Environment
Working Temperature ‑10 ℃ to 55 ℃ (14 ℉ to 131 ℉)
Working Humidity ≤ 90% RH (non‑condensing)
Power Consumption (without HDD) ≤ 50W
Dimensions
Weight (without HDD) ≤ 6.5Kg (14.3lb)
Height 3U
Dimensions 482mm × 533mm × 131mm (19.0"×21.0"×5.1")
