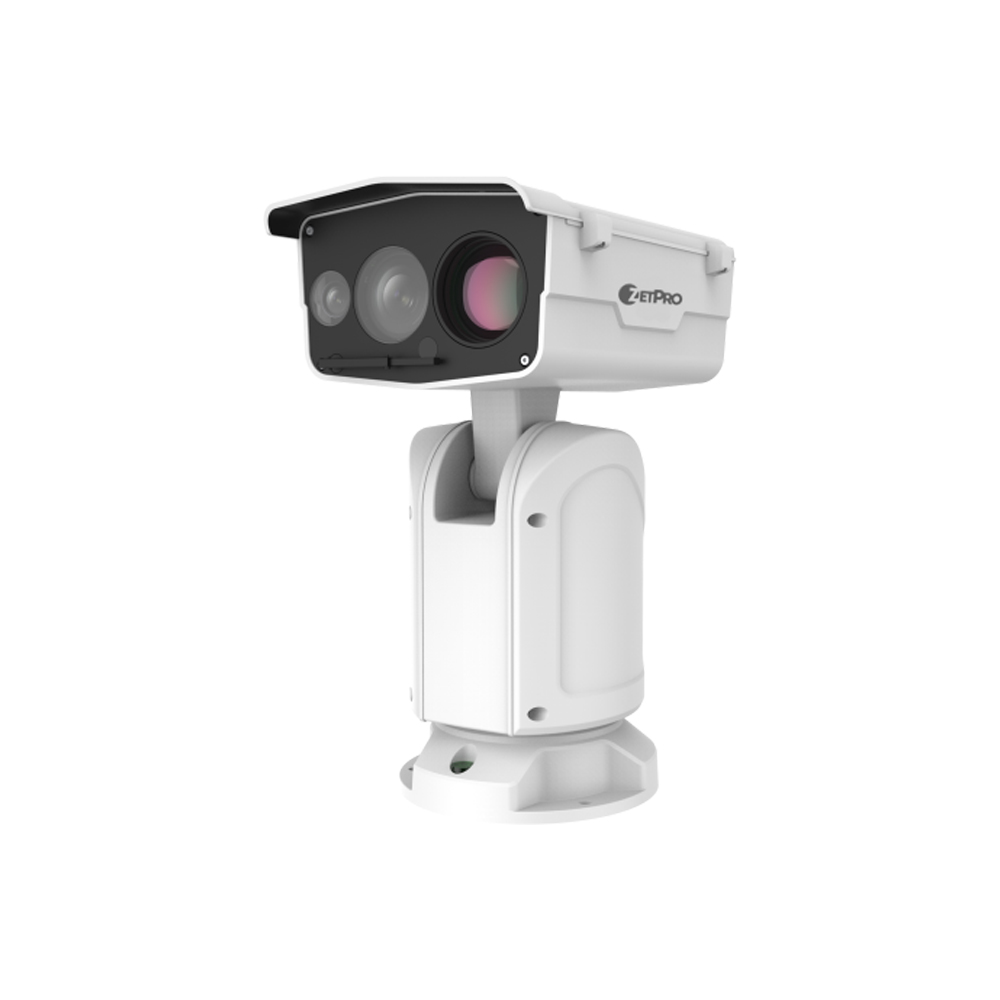

ZIP-TRM9892-X55

2MP + thermal, 55X zoom, 0.0005 lux, IR laser up to 800 m, thermal detection up to 5.2 km, fire detection, auto-tracking, AI intrusion analytics, Ultra H.265, 60 fps, SD 256 GB, 7/2 alarm I/O, IP66, -40 °C~+70 °C, ONVIF.

Description

Characteristics

  • Dual spectrum thermal and optical imaging, dual video with one IP address, adapted to a variety of scenes
  • Passive infrared thermal imager, meets the requirements of covert monitoring and is not affected by bad weather conditions, such as fog, smoke, rain, snow and night, etc.
  • Starlight technology
  • Gyroscope stabilization for a stable image
  • Variofocal Laser: Distance 800 m (2624.7 ft), proportional to the optical zoom of the camera module
  • 2D/3D DNR (Digital Noise Reduction)

Smart

  • Intelligent connection: the thermal channel supports fire detection, the optical channel can communicate with the fire position and zoom
  • Intelligent intrusion prevention based on deep learning algorithm: line crossing, zone entry, zone exit, intrusion, support intelligent tracking

compression

  • 1080P@60fps
  • Ultra265, H.265, H.264, MJPEG
  • Three streams
  • OSD settings

Chain

  • ONVIF compatibility

general

  • Automatic rain wiper
  • Built-in gradient to ensure horizontal position during installation
  • Power source: DC 48V±25%、DC 24V±15%、AC 24V±25%
  • Support 1/1 audio input/output, 7/2 alarm input/output, 1 RS485 port
  • Support for MicroSD cards up to 256G
  • Wide temperature range: -40°C to 70°C (-40°F to 158°F)
  • IP66
Specification
ZIP-TRM9892-X55
Optical module
Sensor 1/1.8″, progressive scan, 2.0 megapixel, CMOS
Lens 6~ 330mm, AF auto focus, motorized lens
Digital zoom 16
Optical zoom 55
DORI distance Zoom（mm） Detection (m) Overview (m) Recognition (m) Identification (m)
6 76.6(251.3t) 30.6(100.4ft) 15.3(50.5ft) 7.6(24.9ft)
330 3330.6(10927.2ft) 1332.2(4370.7ft) 666.1(2185.4ft) 333.1(1092.8ft)
Viewing angle (H) 58.5°~ 1.7°
Viewing angle (V) 35.0°~ 1.0°
Viewing angle (O) 72.0°~ 2.0°
Shutter Auto/Manual, shutter time: 1~1/100000 s
Minimum illumination Color: 0.0005 Lux (F1.3, AGC ON) 0 Lux with IR
Diaphragm Auto/Manual; F1.3 ~ F4.6
Day/Night IR-cut filter with auto switch (ICR)
Digital noise reduction 2D/3D DNR
S/W >55dB
VF laser up to 800m(2624.7ft)
Antifog Optical and digital
WDR 120dB
Thermal imager
Sensor type Vanadium Oxide Uncooled Focal Plane Arrays
Max. expansion 384*288
Video format 720P(1280*720), Max 25fps
Pixel size 17μm
Response wave range 8~14μm
NETD ≤50 mk
Lens 75 mm
Viewing angle (H) 5.0°
Viewing angle (V) 4.0°
Viewing angle (O) 6.1°
Focus Auto/Semiautomatic/Manual
Palette Up to 20 additional color palettes including: hot white, lava, iron oxide red, hot iron, medical, arctic, rainbow 1, rainbow 2, rainbow 3, depict hot, hot ice, hot black, mazarine, fusion, red hot, green hot, color 1, color 2, rain
Detection distance Transport: 5220m (target size 4mx1.4m); man: 2093m (target size 1.8mx0.5m);
Recognition distance Transport: 1305m (target size: 4mx1.4m); person: 523m (target size: 1.8mx0.5m);
Identification distance Transport: 746m (target size: 4mx1.4m); person: 299m (target size: 1.8mx0.5m);
Video
compression Ultra265, H.265, H.264, MJPEG
Frame rate First stream: 2MP (1920×1080): Max.60fps; Second stream: 2MP (1920×1080): Max.60fps; Third stream: D1(720 x 576): Max.60fps;
HLC yes
BLC yes
OSD up to 8 OSDs
ROI up to 8 zones
Private mask Up to 24 zones
Detection zone up to 4 zones
Intellectual
Intelligent intrusion prevention (thermal module) Support for false alarm filtering Line crossing detection, intrusion detection, zone entry detection, zone exit detection
Fire detection (thermal module) Support environmental fire point detection and optical camera communication with zoom tracking and alarm
Fire detection range 4500m (target size 2mx2m)
Events
Basic detection Motion detection, Audio detection, Voltage detection, Intrusion alarm
Detection (optical module) Object movement, automatic tracking
Standard functions Watermark, IP filtering, Alarm input, Alarm output, Access policy, ARP protection, RTSP authentication, User authentication
audio
Audio compression G.711U, G.711A
Audio input/output yes
Noise reduction yes
Sampling frequency 8 KHZ
Storage
Memory card Micro SD, up to 256GB
Network storage ANR,NAS(NFS)
Chain
Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP
Compatibility, integration ONVIF (Profile S, Profile G, Profile T), API
Web browser Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52
Turn and tilt
Panning range 360° (endless)
Pan speed 0.1°/s ~ 140°/s
preset: 140°/s
Tilt range -90° ~ 45°
Tilt speed 0.1° ~ 40°/s
preset: 40°/s
Number of presets 1024
Patrol Preset patrol, route patrol, recorded patrol
Home position yes
Interface
Audio I/O Audio interface
1 input: impedance 35kΩ; amplitude 2V [pp]
1 output: impedance 600Ω; amplitude 2V [pp]
Alarmed I/O 7/2
Serial port 1 RS485
Video output Yes (Thermal module)
Network 1 RJ45 10M/100M/1000M Base-TX Ethernet+1 100M/1000M SFP
general
Power DC 48V±25%、DC 24V±15%、AC 24V±25%
Consumption: max. 119W
Dimensions (Φ × H) 505.2mm × 280.1mm × 365.9mm (19.9″ × 11.0″ × 14.4″)
Weight 15.09kg(33.27lb)
Working environment -40°C ~ 70°C (-40°F ~ 158°F), relative humidity: ≤95% RH (non-condensing)
Storage environment -40°C ~ 70°C (-40°F ~ 158°F), relative humidity: ≤95% RH (non-condensing)
Protection against voltage surges 6KV
Protection IP66
