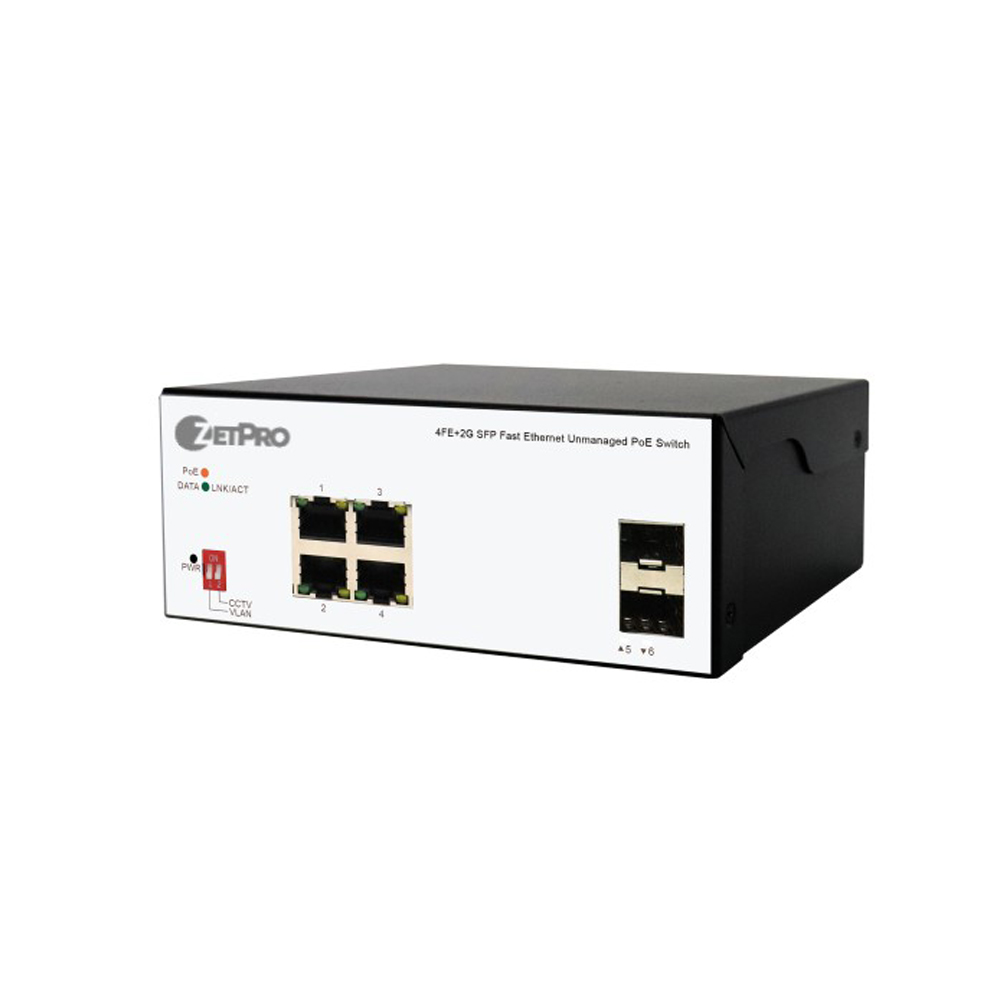

ZIP-ZP402P-SFP

4x 100Mbps RJ45, 2x 1Gbps SFP. IEEE802.3at/af. Capacity: 4.8 Gbps. Temp: -30°C to 65°C. Size: 145x109x58 mm. Protection: 4kV surge, 8kV ESD.

Description
  • 4×10/100Mbps Ethernet ports
  • 2×Gigabit Uplink ports (SFP slots, 1000 Mbps)
  • 4xPoE ports
  • PoE standard – IEEE802.3af/at
  • Switching capacity – 4.8 Gbps
  • Extended temperature range: stable operation from -30 °C to 65 °C
  • Reliable protection: surge protection (up to 4 kV) and ESD protection (up to 8 kV air / 6 kV contact)
  • Easy to use, requires no configuration (Plug and Play)
Specification
Model ZIP-ZP402P-SFP
Hardware  Specification
Standards IEEE802.3、IEEE802.3u、IEEE802.3z、IEEE802.3ab、IEEE802.3x、IEEE802.3af、IEEE802.3at
Ports Type 4*10/100Mbps RJ45 Ports 2*1000Mbps SFP Slots
Switching capacity 4.8Gbps
Jumbo Frame 16KBytes
Forwarding performance 3.57Mpps
Packet Buffer 2 M bit
MAC 4K
Transfer Mode Store‑and‑forward
Dimensions (W×D×H) 145*109*58mm
Operating Temperature ‑30°C to 65 °C
Operating Humidity 5% ~ 95% non‑condensing
 Storage Humidity 0% ~ 95% non‑condensing
 Indicator PWR, LNK/ACT, PoE,DATA
Electrostatic Standard Contact ±6KV, Air ±8KV
Surge Protection Differential mode ±2KV  Common mode ±4KV
